Bill Acceptor Type A (Bill Acceptor A)

1) Bill acceptors that use a single normally open pulse based signal. (e.g ICT Bill Acceptor)

1. You will require the BillAcceptor wire harness that has 1 wire on it.

2. Open up the machine and the bill acceptor.

3. Attach 1 G-splice connector to the blue wire coming from the bill acceptor and connect them to BA of the Alpha-3 wire harness.

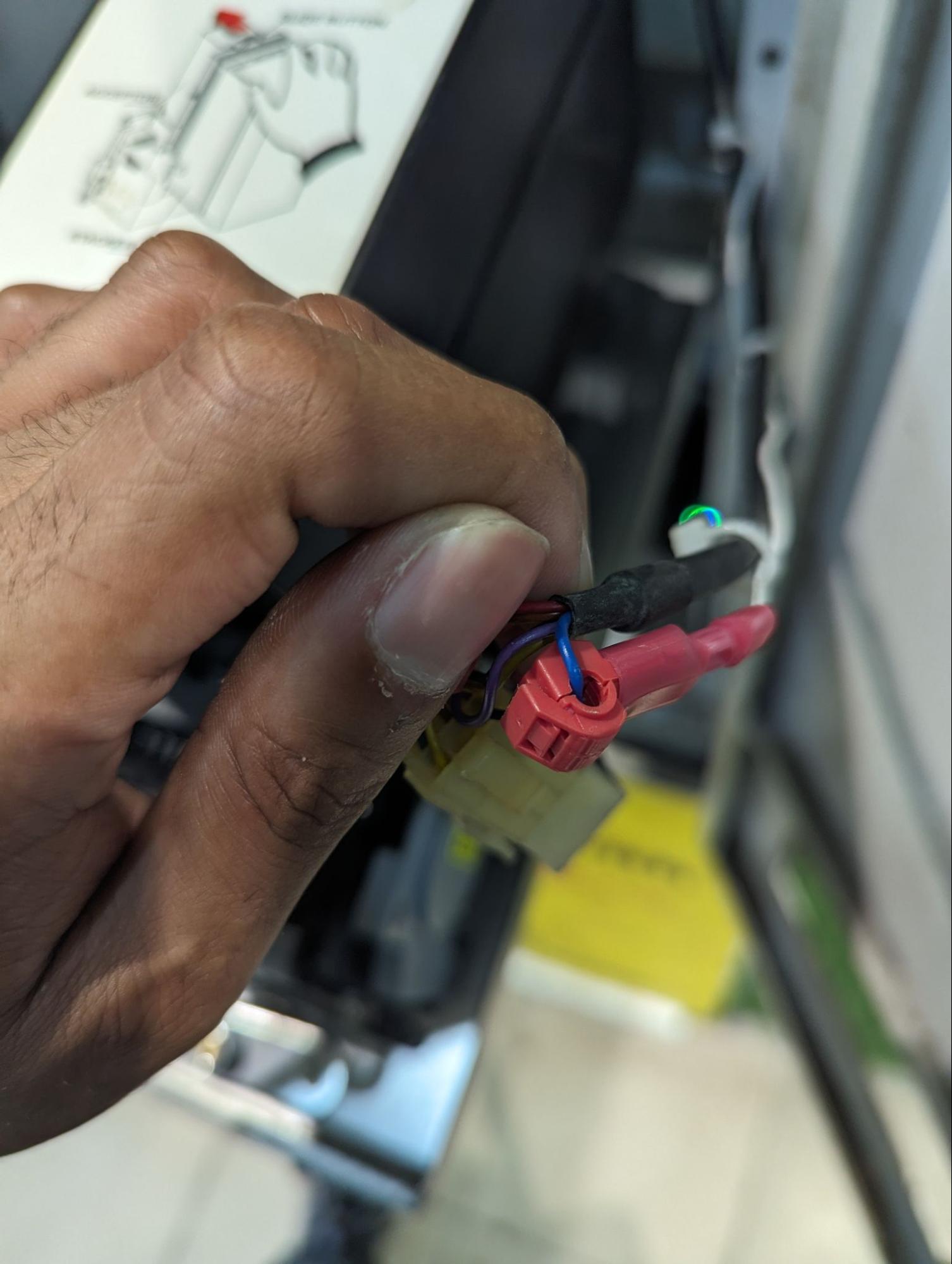

Example: BA1 connection from Bill Acceptor

2) Take power for the device from the machine’s 12V power supply using a 2-core wire, and run the wire to the device.

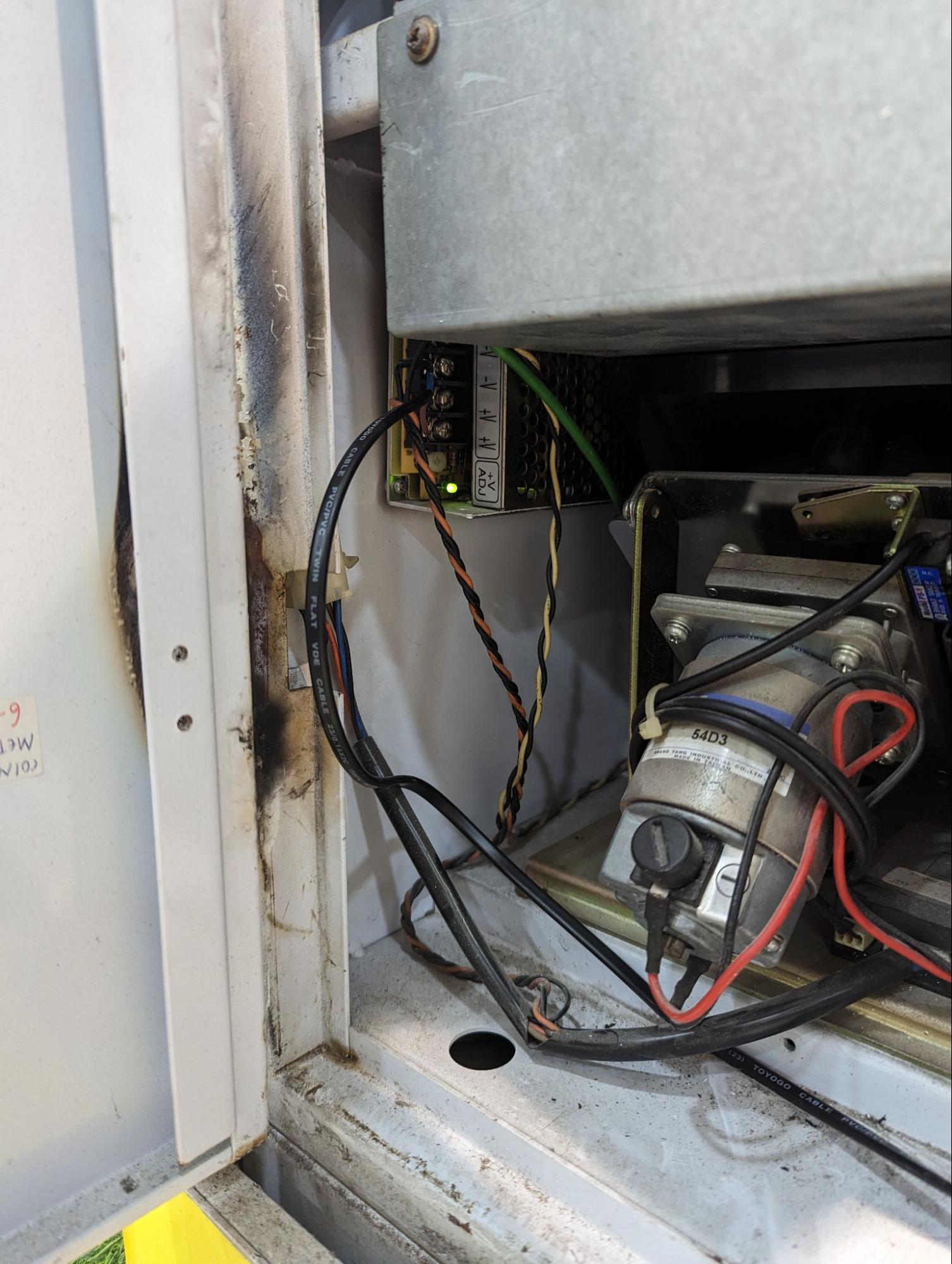

Example: Power Supply 12v connection for device

3) Cable tie the wires neatly, and attach the Alpha-3 device where it won't interrupt the bill acceptor.

⚠️ Attention: If any of the tests are not detected, check the connections and ensure they are tapped properly. For best results, connect the related connections together for better conductivity.
