Installing additional Access Point (AP)

Installing additional Access Point (AP)

When an outlet has a large number of devices, adding an additional stand-alone access point (AP) can help reduce the load on the router and improve connectivity. This guide explains the process of adding an additional AP and how how to migrate the WIFI settings from the original router to the new AP.

1. Connect to the Existing Wi-Fi Network

Connect to your existing WIFIWi-Fi network (eg.e.g., Laundro)laundro) using a mobile device such as a laptop or mobilesmartphone.

device.


2. Access the Router's Web Interface

Open a web browser (e.g., Chrome) and enter the IP address of the router. Common router IP addresses include:

    192.168.0.1

    192.168.1.1

    192.168.100.1

    Connect_to_LaundroAP.png192.168.1.1 page.png

    3. Log In to the Router

    Enter the router's login credentials. These may have been set previously or can often be found on a label at the bottom of the router. This will take you to the router's home page.


    4. Identify the Access Point (AP)

    Click on the Wired Clients icon. You should see a device listed—this is the access point (AP). Take note of its IP address (e.g., 192.168.1.120).

    GetIP of AP.png

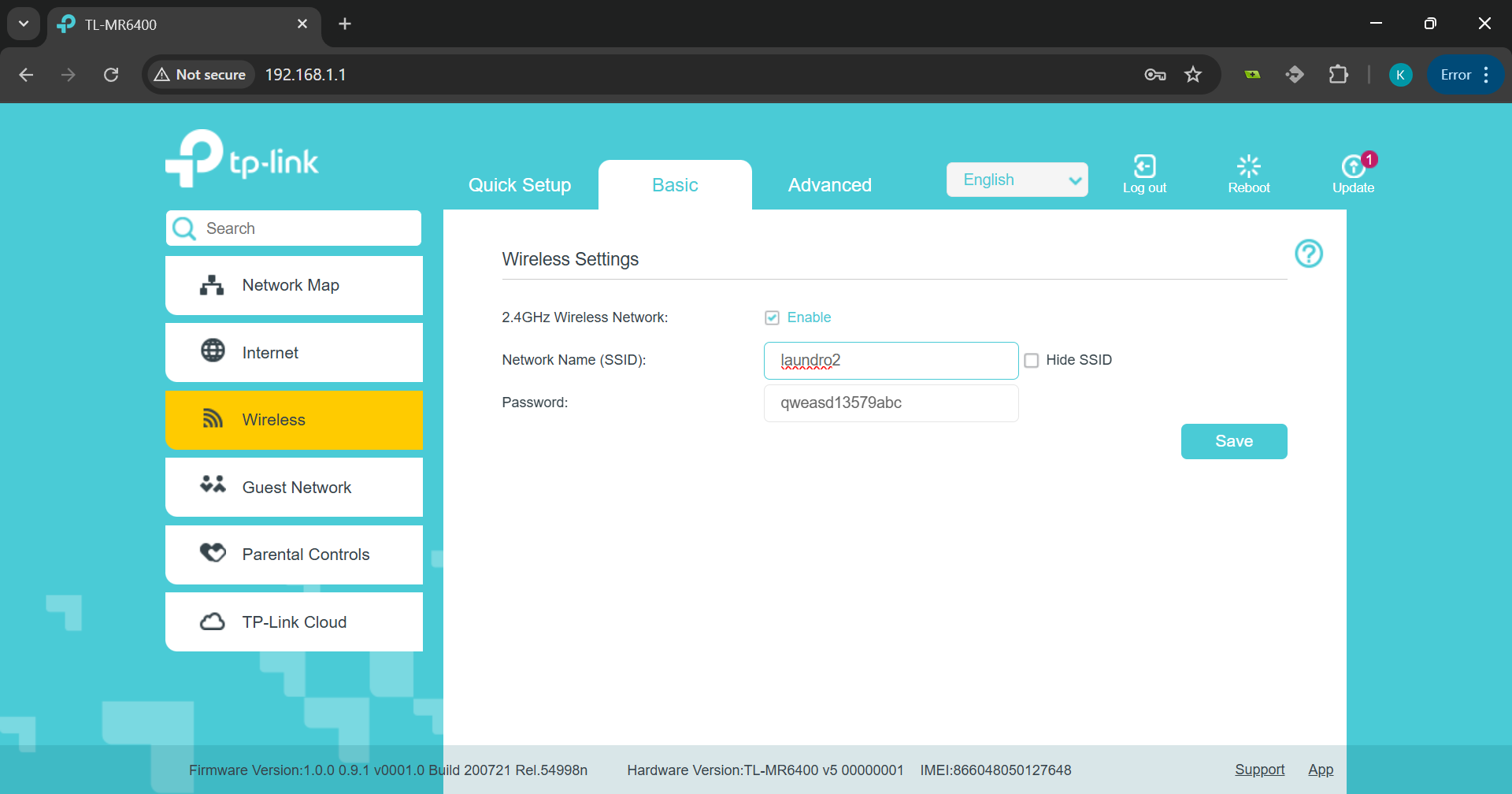

    5. Rename the Router’s SSID

    Click on the Wireless tab in the left navigation menu. Change the name of the current SSID (Wi-Fi network name) to something different, then click Save.

    Change AP name.png

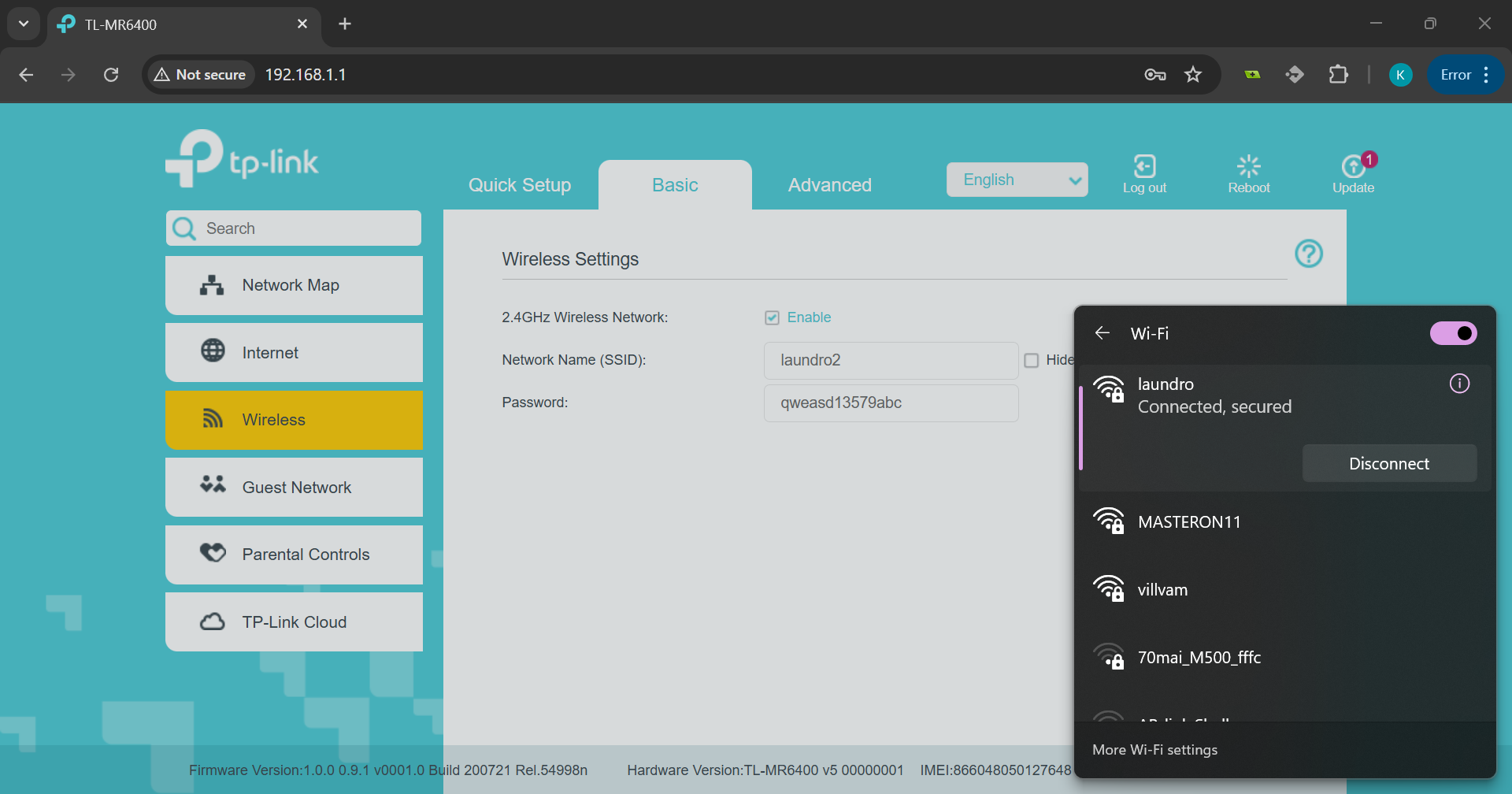

    6. Disconnect from the Router

    Changing the SSID will disconnect you from the Wi-Fi network. If the device does not disconnect automatically, you can manually do so.

    Disconnect from laundro.png

    7. Connect to the Access Point

    Now connect to the AP's default Wi-Fi network. This is usually named after the AP model.

    Connect to new AP.png

    8. Log In to the Access Point

    Open a new tab in your browser and enter the IP address you noted earlier. This will bring you to the AP’s login page. Log in using the default credentials provided by the manufacturer (e.g.,
    Username: admin
    Password: admin).

    NewAP sign in page.png

    9. Change Default Credentials

    You will be prompted to change the default username and password. Choose secure credentials and make sure to remember them. Click Next to proceed.

    Setup new acc in AP.png

    10. Configure Wi-Fi Settings on the AP

    Set the SSID and password to match the original network name and credentials (e.g., laundro). Click Save.

    Set new AP wifi.png

    11. Wait for Settings to Apply

    The AP will apply the new settings. A loading bar will be displayed during this process.

    Applying .png

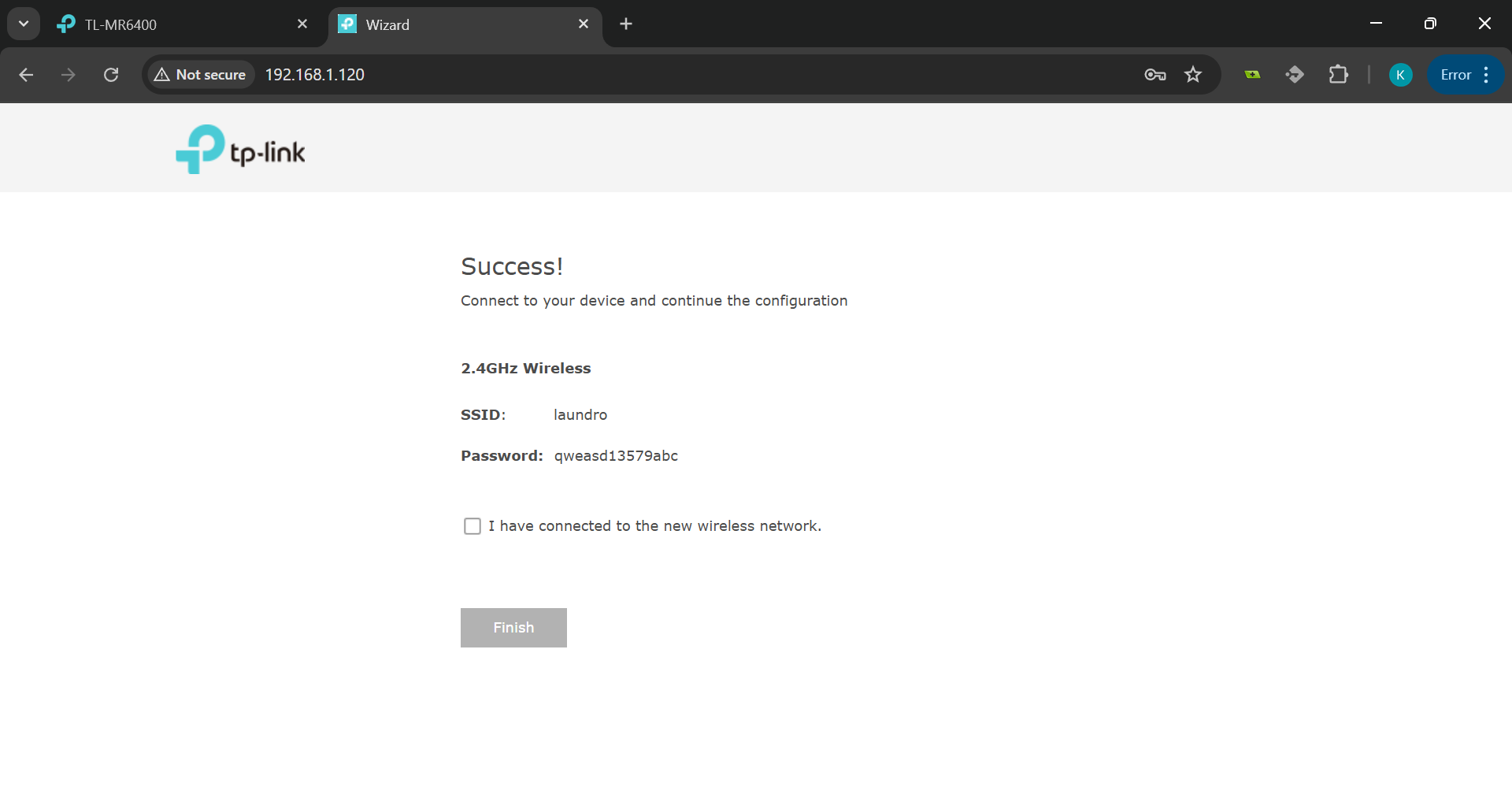

    12. Confirmation Page

    Once the settings are saved, a success page will appear prompting you to reconnect to the updated network.

    Success Page.png

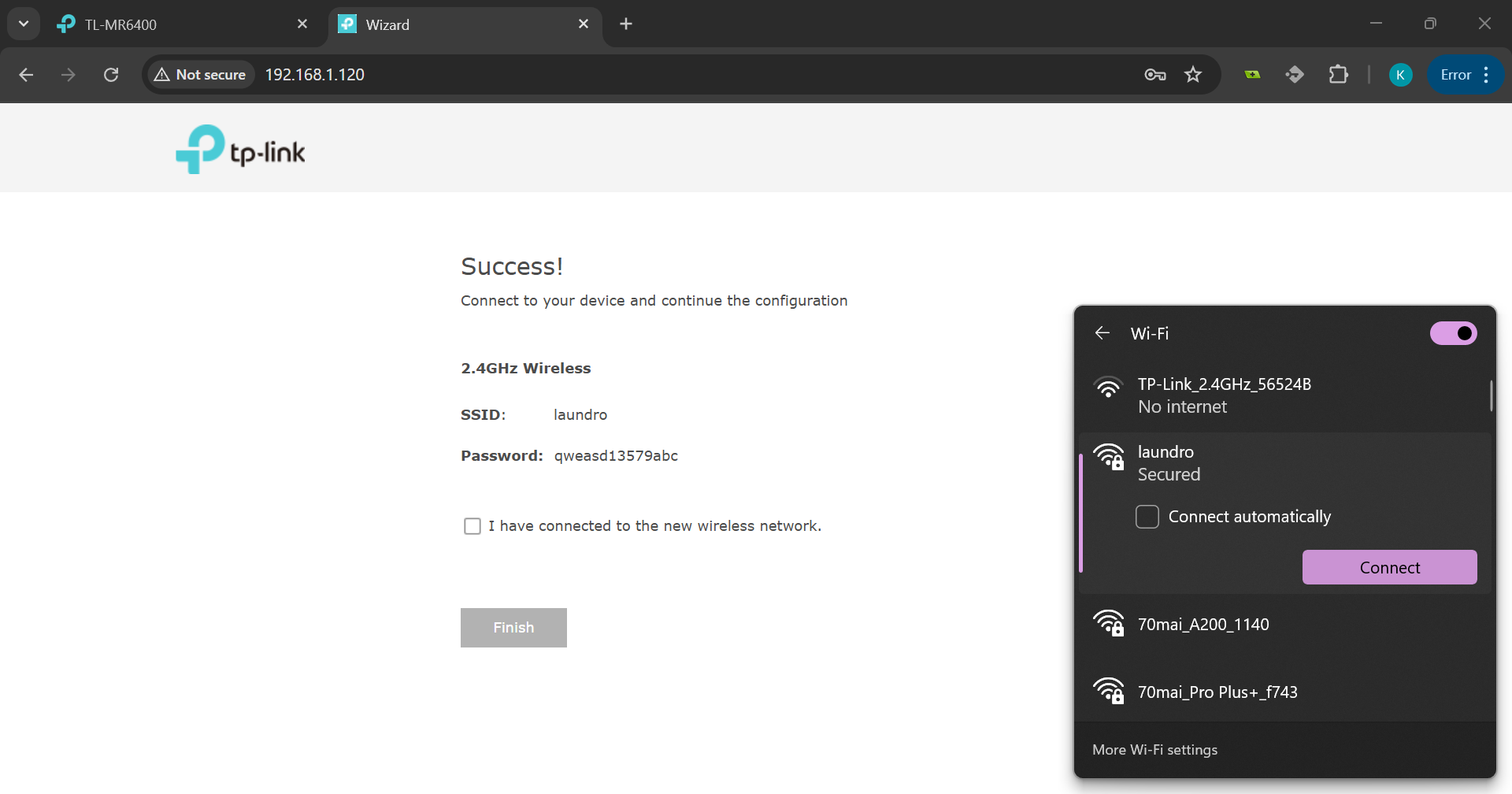

    13. Reconnect to the Original SSID

    Reconnect to the original SSID (e.g., Laundro), check the box that says "I have connected to the new wireless network", and click Finish.

    Success Page with wifi.png

    14. Verify AP Setup

    You will now be directed to the AP’s home page. Confirm that the setup has been completed successfully.

    New AP Home.png

    15. Check Connected Devices

    Navigate to the Client List tab and verify that devices (such as Alpha devices) are starting to connect to the new AP.

    New AP_ Client List.png

    16. Reopen the Router Settings

    In your browser, go back to the router's IP address (e.g., 192.168.1.1) and log in again.

    192.168.1.1 page.png

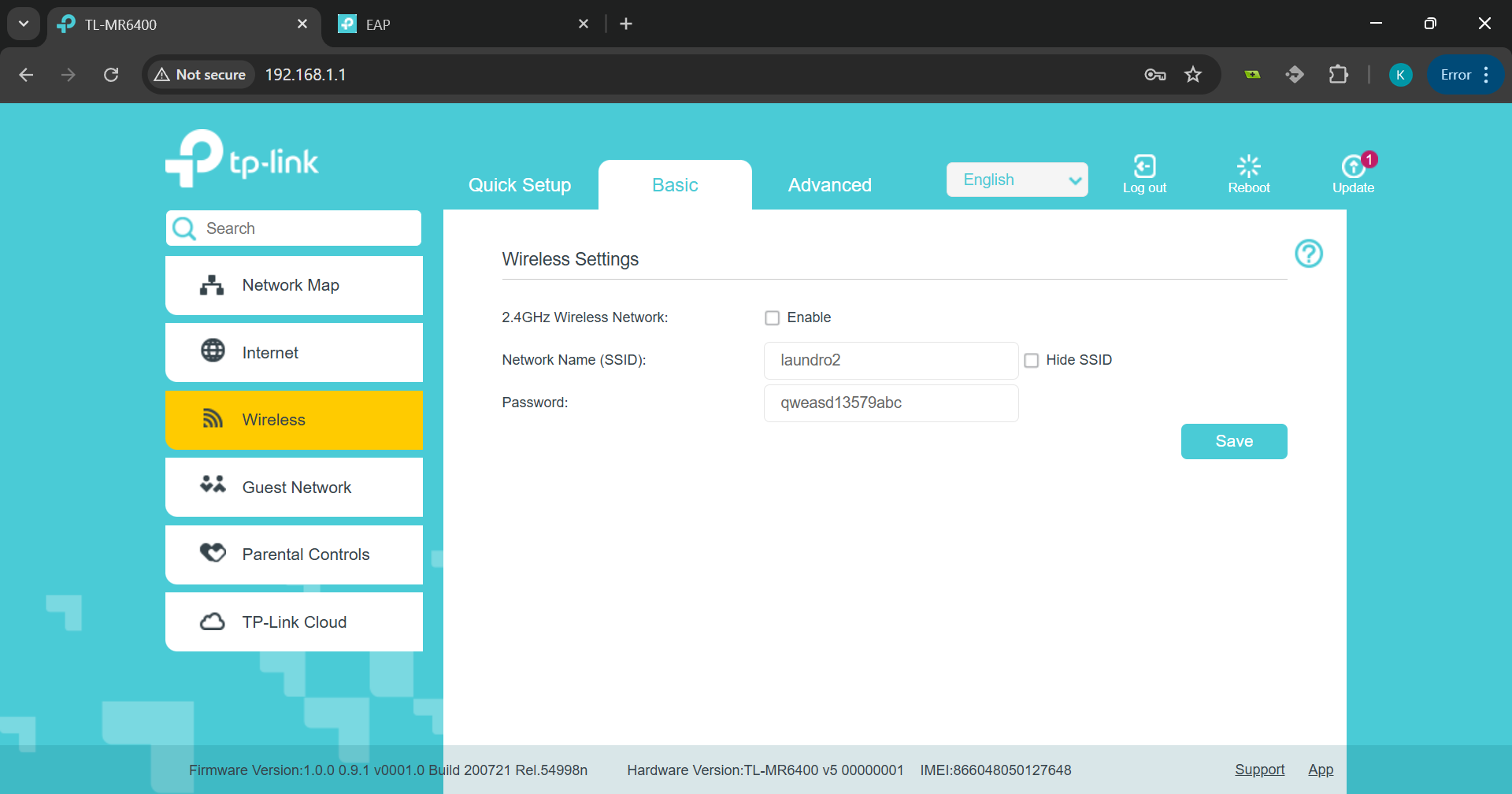

    17. Disable the Router’s SSID

    Go to the Wireless tab in the router settings. Uncheck the Enable SSID checkbox to disable the router's own wireless network. Click Save.

    Disable old wifi.png

    18. Final Verification

    Verify that all devices are online via NodeCloud, and confirm that only the original SSID (now being broadcast by the AP) is active.
